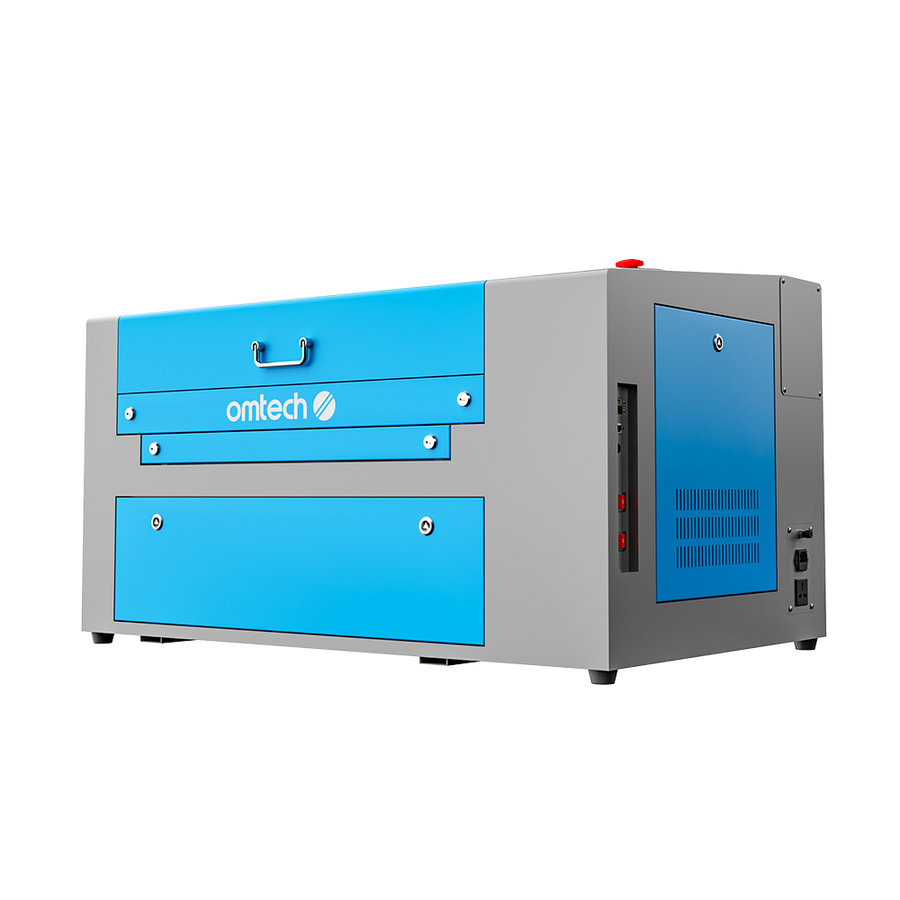

OMTech's 50W CO2 laser engraver engraves as deep as 0.4" (10 mm) on wood, glass, acrylic, leather, and more nonmetallic materials at speeds up to 23.6 ips (600 mm/s)Increases response speed, performance, and cutting power
Allows you to work pieces much larger than the bed size by sliding them through as you go
20” x 12” workbed with both honeycomb and knife blade engraving platforms to handle a wide variety of objects and materials
The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8
2 USB ports allow flash drive connectivity and a USB-to-USB PC connection
All OMTech CO2 laser machines of 50W and up are compatible with Light Burn software.
• FDA Compliant
• CE Certification
Flame-retardant material widened viewing window
Built-in Ventilation
Water Flow Sensor
Automatic Shutdown
2-year warranty on machine parts and hardware (exclusions apply);
1-year warranty on laser tubes and power supplies of 70W and up;
6-month warranty on laser tubes and power supplies 40W—60W.
45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California
-
Laser Output
50W
-
Engraving Area
12" × 20"
-
Max. Cutting Depth
0.4 in. (10 mm)
-
Max. Engraving Speed
23.6 ips (600 mm/s)
-
Est. Service Life
2000 hr.
-
Cooling Method
Water
-
Product Dimensions
40 x 25.6 x 24.8 in. (102x65x63 cm)
-
Input Power
110V/60Hz
-
Laser Tube Length
34.6 in. (880 mm)
-
Laser Tube Diameter
2 in. (50 mm)
-
Net Weight
165 lb. (75 kg)
-
Front & Rear Pass-Through Size
24.4 x 1.9 in. (620x50 mm)
-
Compatible Operating Systems
Windows 2000, XP,Vista, 7, 8, 10
-
Compatible Software (not incl.)
LightBurn, CorelDRAW, AutoCAD
-
Supported Image Formats
.ai, .bmp, .dxf, .emf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg,.tiff, .tga, .wmf
- Acrylic
- Wood
- Leather
- Plastics
- Fabrics
- Glass
- Rubber
- Cork
- Brick
- Granite
- Marble
- Tile
- River Rock
- Bone
- Melamine
- Phenolic
- Aluminum
- Stainless Steel
- Titanium
-
Acrylic
-
Wood
-
Leather
-
Plastics
-
Fabrics
-
Glass
-
Rubber
-
Cork
-
Brick
-
Granite
-
Marble
-
Tile
-
River Rock
-
Bone
-
Melamine
-
Phenolic
-
Aluminum
-
Stainless Steel
-
Titanium
