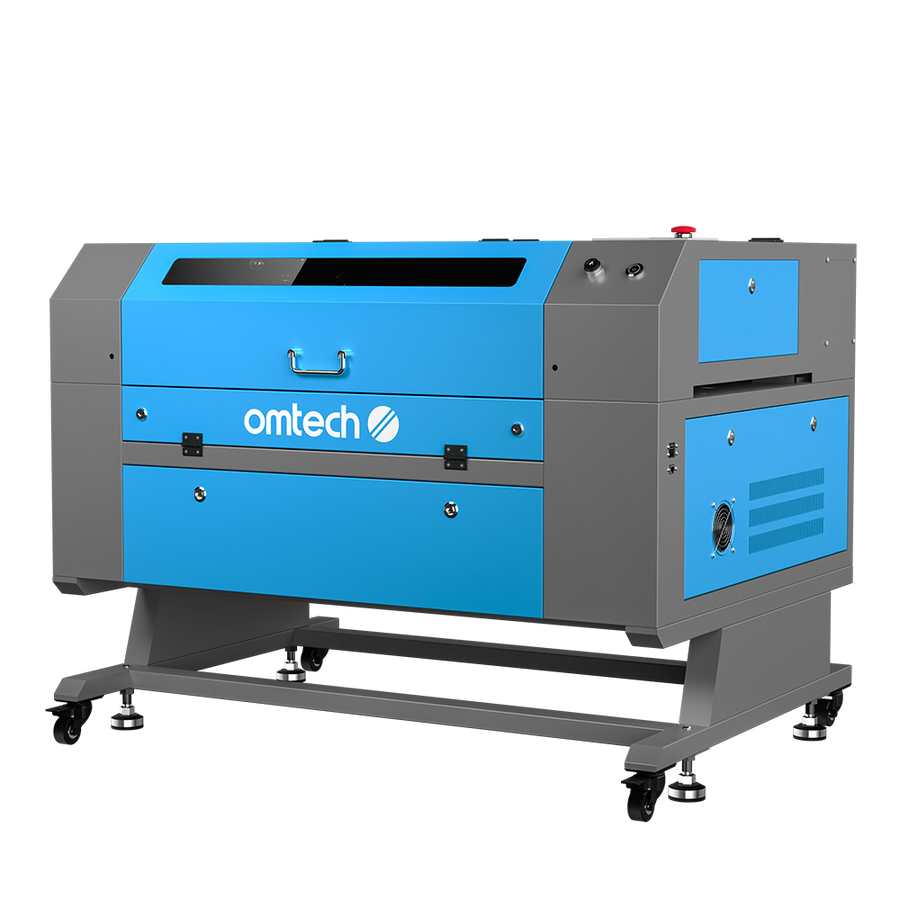

AF2028-60 - 60W CO2 Laser Engraver Cutting Machine with 20” x 28” Working Area and Auto Focus

AF2028-60 - 60W CO2 Laser Engraver Cutting Machine with 20” x 28” Working Area and Auto Focus

Regular price CA$4,199.99
/
Shipping calculated at checkout.
FEATURES
60W CO2 Laser Cutting Power

60W CO2 laser engraver engraves as deep as 0.4" (10 mm) on various nonmetallic
materials such as wood, glass, acrylic, leather, and more. With speeds up to 23.6 ips (600 mm/s),
it transforms your artistic visions into reality that draws wows and aahs.

Get Right to Work with Autofocus

No more struggling with manual adjustments or guesswork. This laser
engraving machine's workbeds adjust up and down at the touch of a button and
the preinstalled autofocus will automatically find the right focal distance for
you.

Four-Way Pass-Through

Allows you to work pieces much larger than the bed size by sliding them through as you go

Dual Workbeds

20” x 28” workbed with both honeycomb and knife blade engraving platforms to handle a wide variety of objects and materials

Dive into Work with Confidence

The high-performance DC tube delivers 60W of power for up to 1000 hours of usage and doubles its lifespan when consistently used at lower settings.

Compatible with LightBurn Software

All OMTech CO2 laser machines of 50W and up are compatible with Light Burn software.

Certifications: Designed and engineered in USA

• FDA Compliant

• CE Certification

• ISO9001 Quality Certification

Safety Ensurance

The widened viewing window is made from flame retardant material to ensure lasting safe use, while the built-in air assist efficiently removes smoke and dust to protect your laser lenses and reflective mirrors

2-Year Warranty

2-year warranty on machine parts and hardware (exclusions apply);

1-year warranty on laser tubes and power supplies of 70W and up;

6-month warranty on laser tubes and power supplies 40W—60W.

Tech Support

45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

SPECS
  • Laser Output

    60W

  • Net Weight

    249 lbs

  • Overall Dimensions

    47” x 34” x 37”

  • Engraving Speed

    0-23.62 in/s

  • Engraving/Cutting Thickness

    0-0.4"(depending on materials)

  • Data Transfer Interface

    Flash Drive; USB to PC; Ethernet to PC & Offline Capabilities

  • Working Size

    20" × 28"

  • Compatible System

    Windows, MacOS if you use LightBurn software (not included)

  • Supported Graphics Formats

    HPGL; BMP; GIF; JPG; JPEG; DXF; DST; AI; etc

  • Focal lens diameter

    18mm

  • Mirror Diameter

    25mm

  • Focal length

    2''

  • Power Source

    110v

YOU CAN ENGRAVE AND CUT THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
YOU CAN ENGRAVE AND CUT THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
