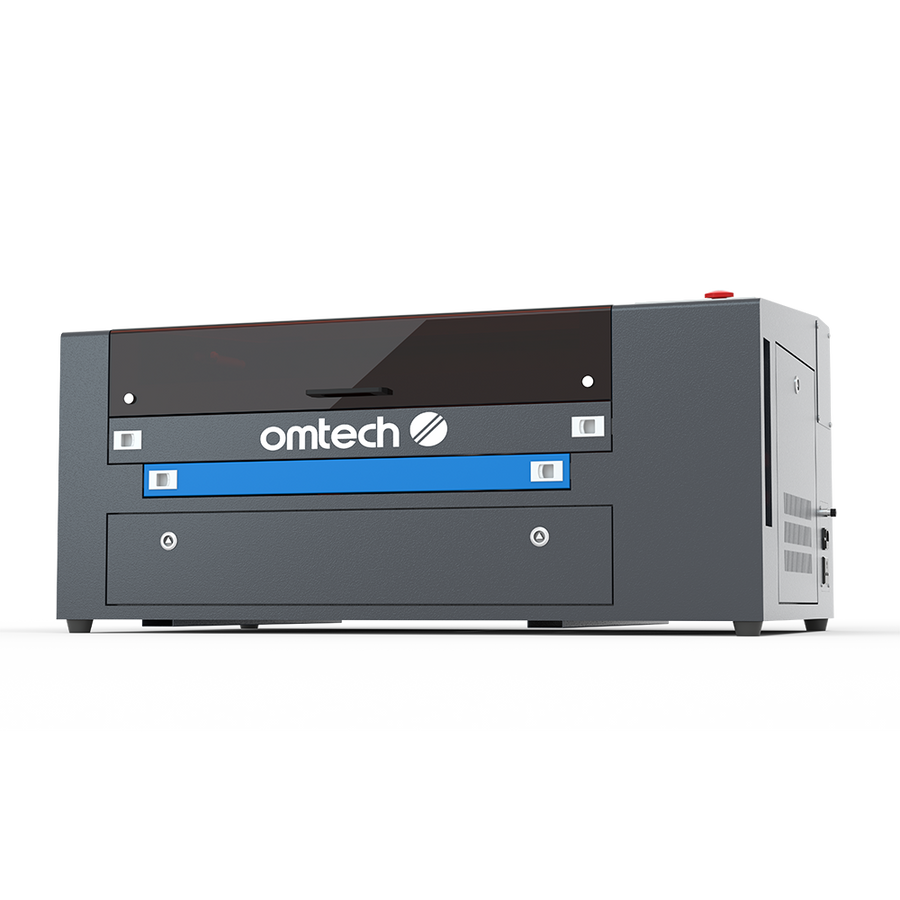

MF1220-50R - 50W CO2 Laser Engraver Cutting Machine 12” x 20” with Rotary Axis

MF1220-50R - 50W CO2 Laser Engraver Cutting Machine 12” x 20” with Rotary Axis

Regular price CA$2,999.99 Sale price CA$2,599.99 Save CA$400
/

Save an extra CA$200 automatically at checkout

Shipping calculated at checkout.
FEATURES
50W CO2 Laser Cutting Power

Cuts up to 6 mm (¼″) thick acrylic/plexiglass. Increases response speed, performance, and cutting power

Two-Way Pass-Through

Allows you to work pieces much larger than the bed size by sliding them through as you go

Dual Workbeds

20” x 12” workbed with both honeycomb and knife blade engraving platforms to handle a wide variety of objects and materials

Rykon Digital Controller

The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8

Liner Rail Guiding System

Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life.

USB & Ethernet Ports

2 USB ports allow flash drive connectivity and a USB-to-USB PC connection

Compatible with LightBurn Software

All OMTech CO2 laser machines of 50W and up are compatible with Light Burn software.

Certifications: Designed and engineered in USA

• FDA Compliant

• CE Certification

• ISO9001 Quality Certification

Safety Ensurance

Air Assist

Built-in Ventilation

Water Flow Sensor

Automatic Shutdown

2-Year Warranty

2-year warranty on machine parts and hardware (exclusions apply);

1-year warranty on laser tubes and power supplies of 70W and up;

6-month warranty on laser tubes and power supplies 40W—60W.

Tech Support

45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

SPECS
  • Rated Laser Power

    50W

  • Engraving Area

    12" × 20"

  • Max. Engraving Speed

    23.6 in./sec.

  • Rotary Axis

    Included

  • Cooling Method

    Water

  • Product Dimensions

    41" × 25.6" × 20"

  • Input Power

    110V/60Hz

  • Lift Table

    0-5.1"

  • Max. Cutting Speed

    15.7 in./sec.

  • Positioning Accuracy

    ±0.01 mm

  • Net Weight

    165 lb

YOU CAN ENGRAVE AND CUT WITH THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
YOU CAN ENGRAVE AND CUT WITH THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
