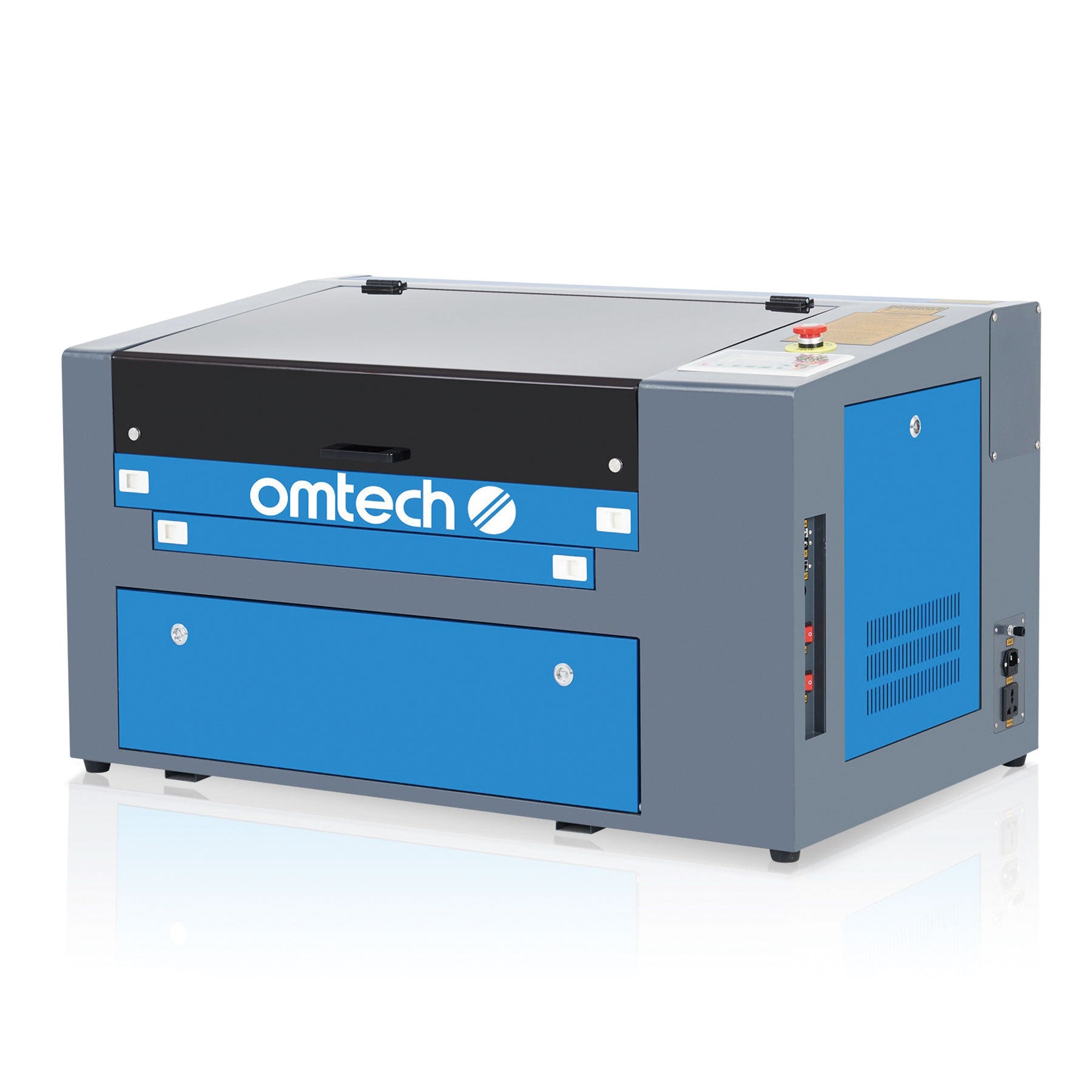

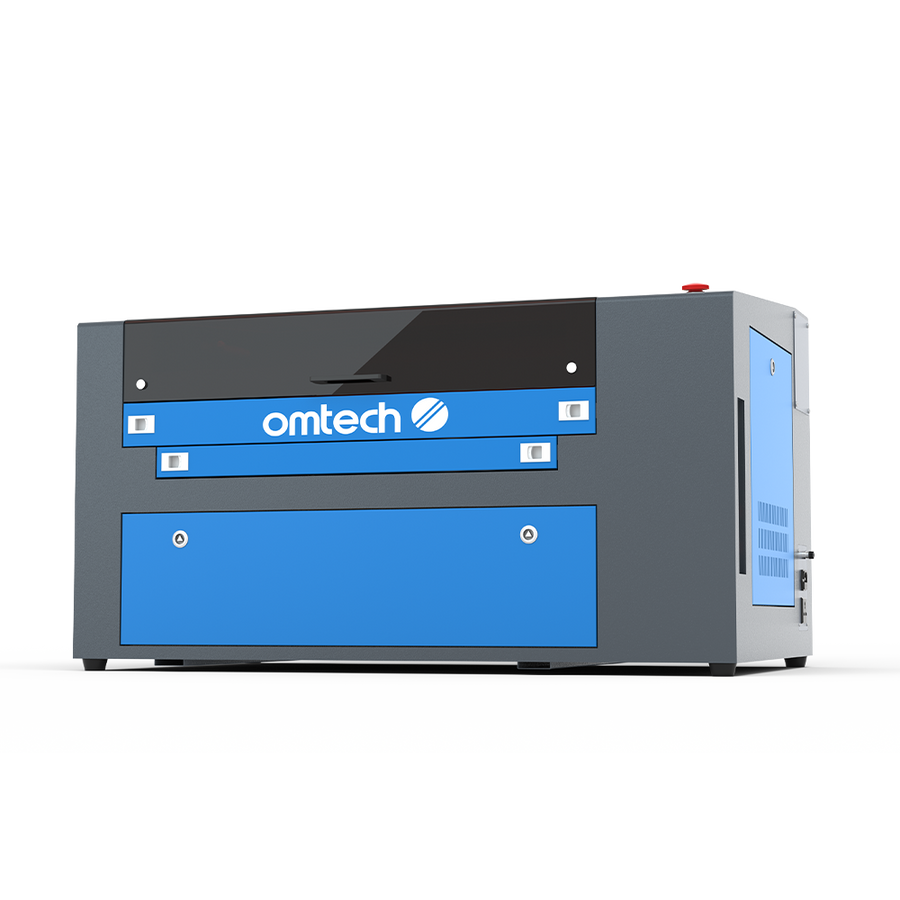

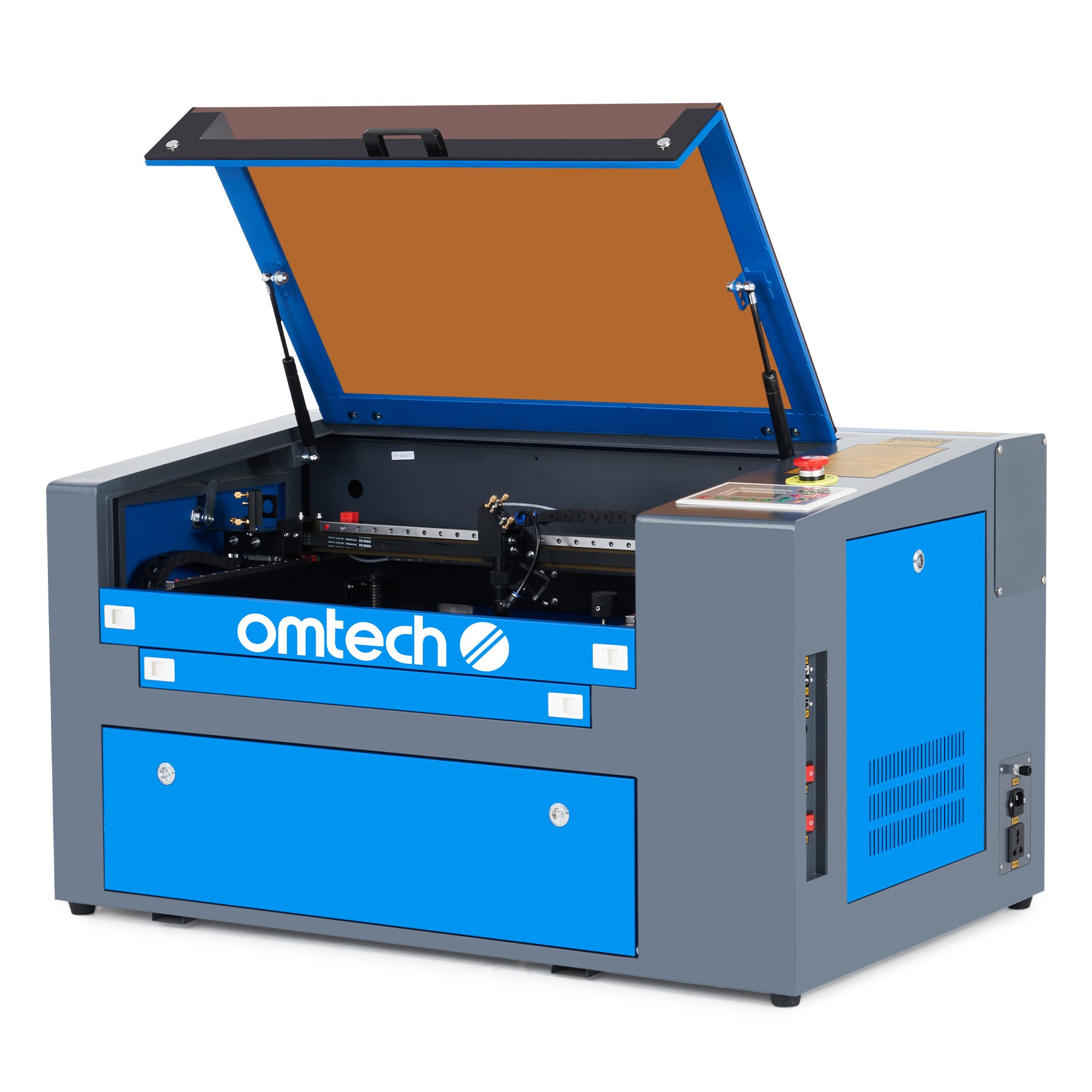

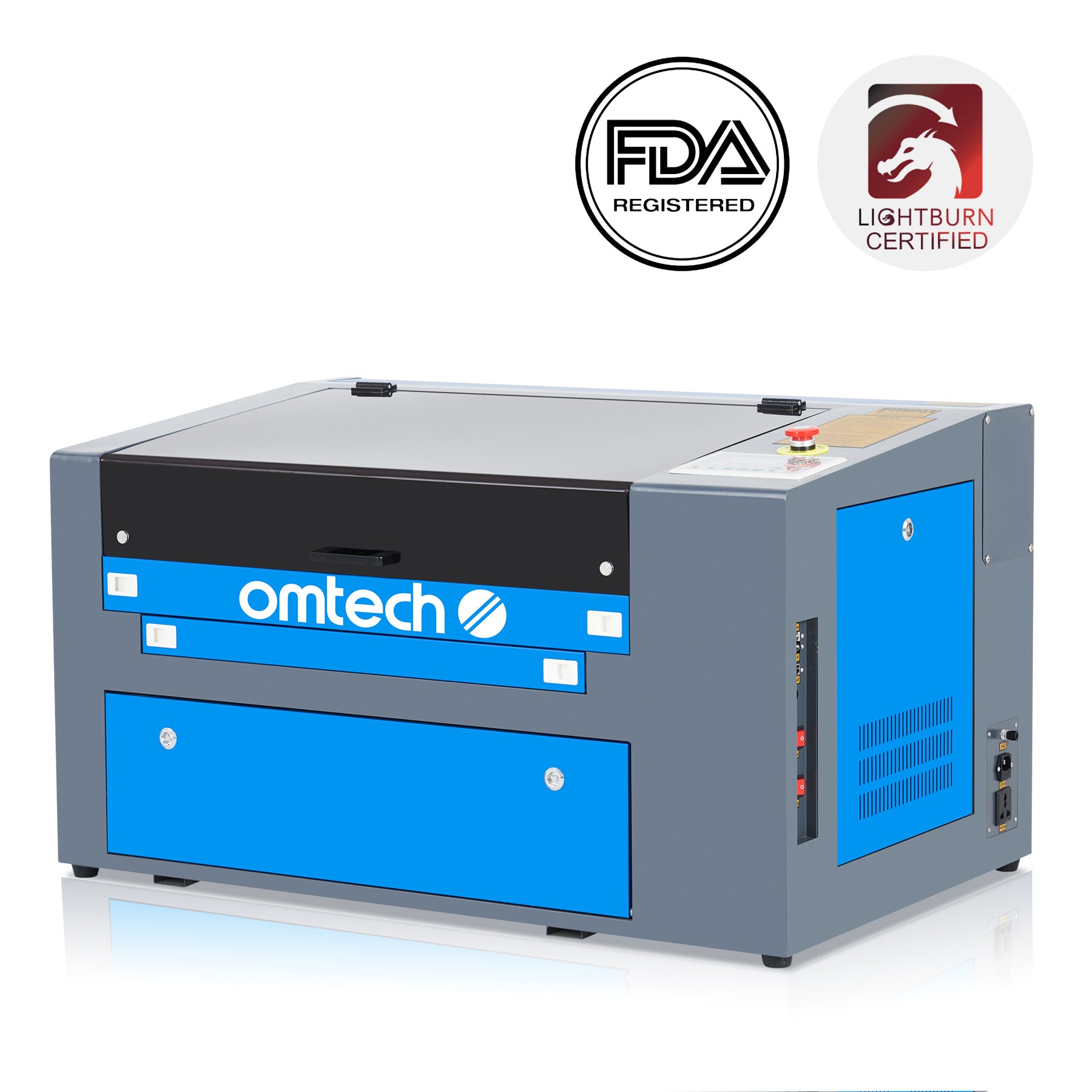

MF1220-50 - 50W CO2 Laser Engraver Cutting Machine with 12” x 20” Working Area

MF1220-50 - 50W CO2 Laser Engraver Cutting Machine with 12” x 20” Working Area

Regular price CA$3,199.99 Sale price CA$2,899.99 Save CA$300
/
Shipping calculated at checkout.

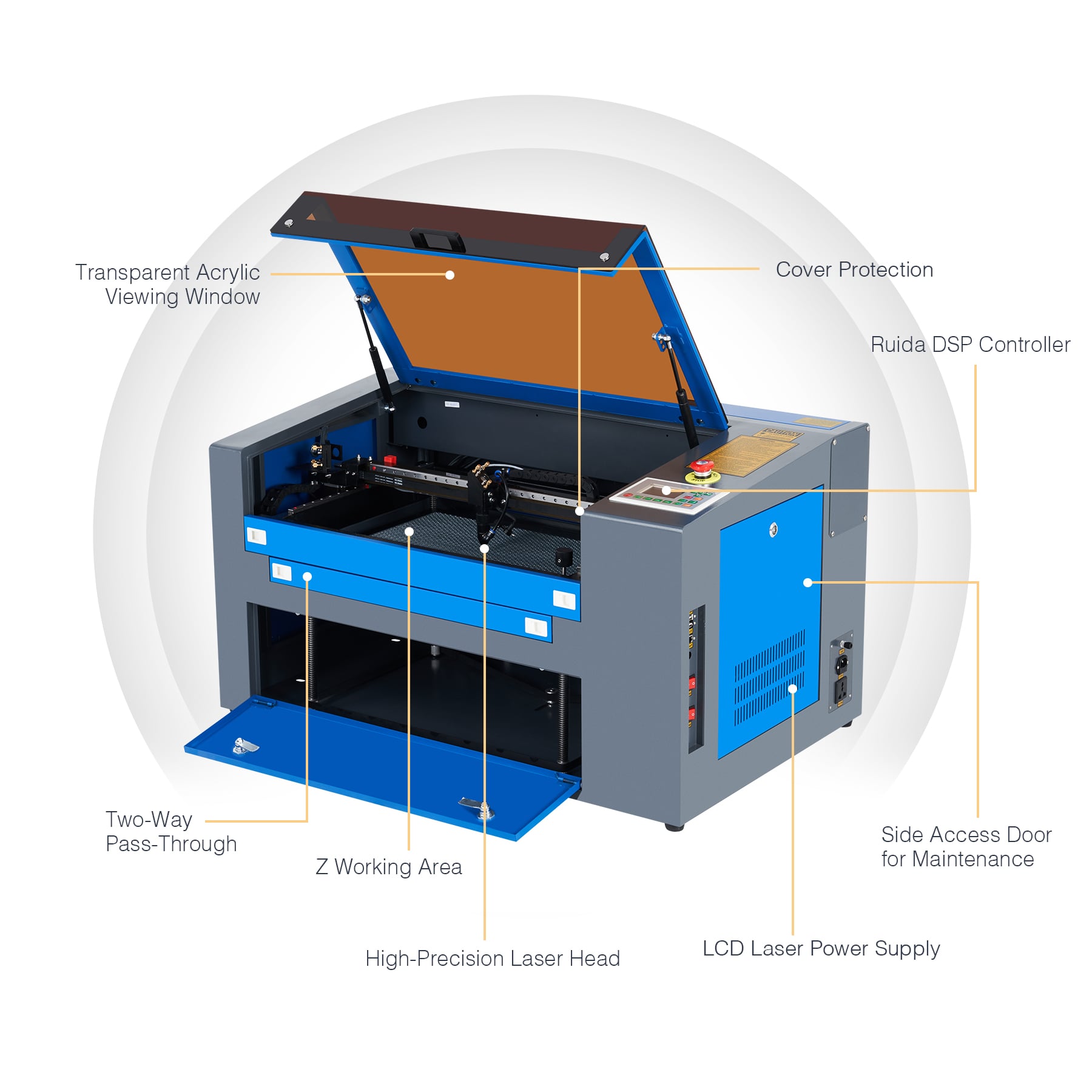

FEATURES
50W CO2 Laser Cutting Power

Cuts up to 6 mm (¼″) thick acrylic/plexiglass. Increases response speed, performance, and cutting power

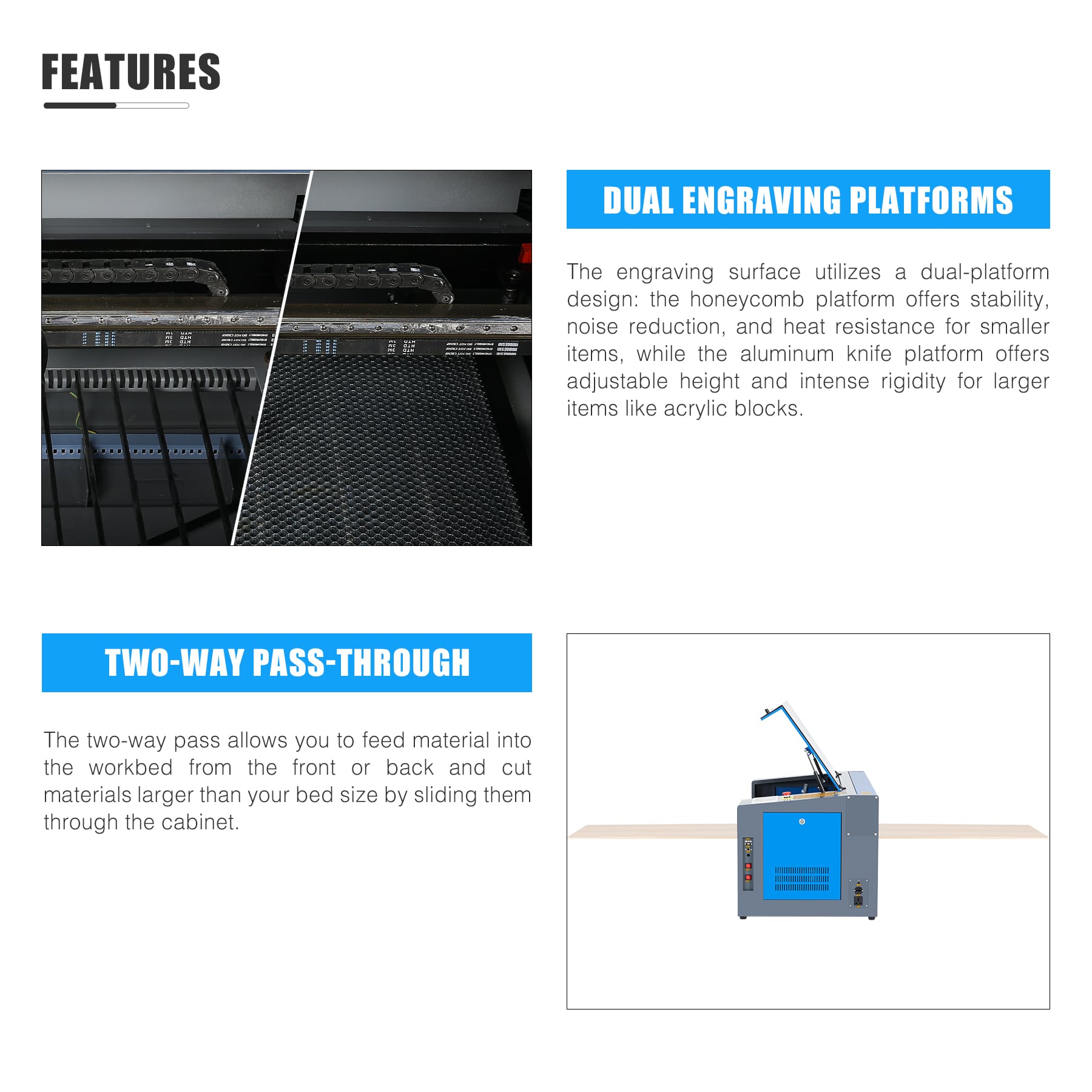

Two-Way Pass-Through

Allows you to work pieces much larger than the bed size by sliding them through as you go

Dual Workbeds

20” x 12” workbed with both honeycomb and knife blade engraving platforms to handle a wide variety of objects and materials

Rykon Digital Controller

The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8

Liner Rail Guiding System

Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life.

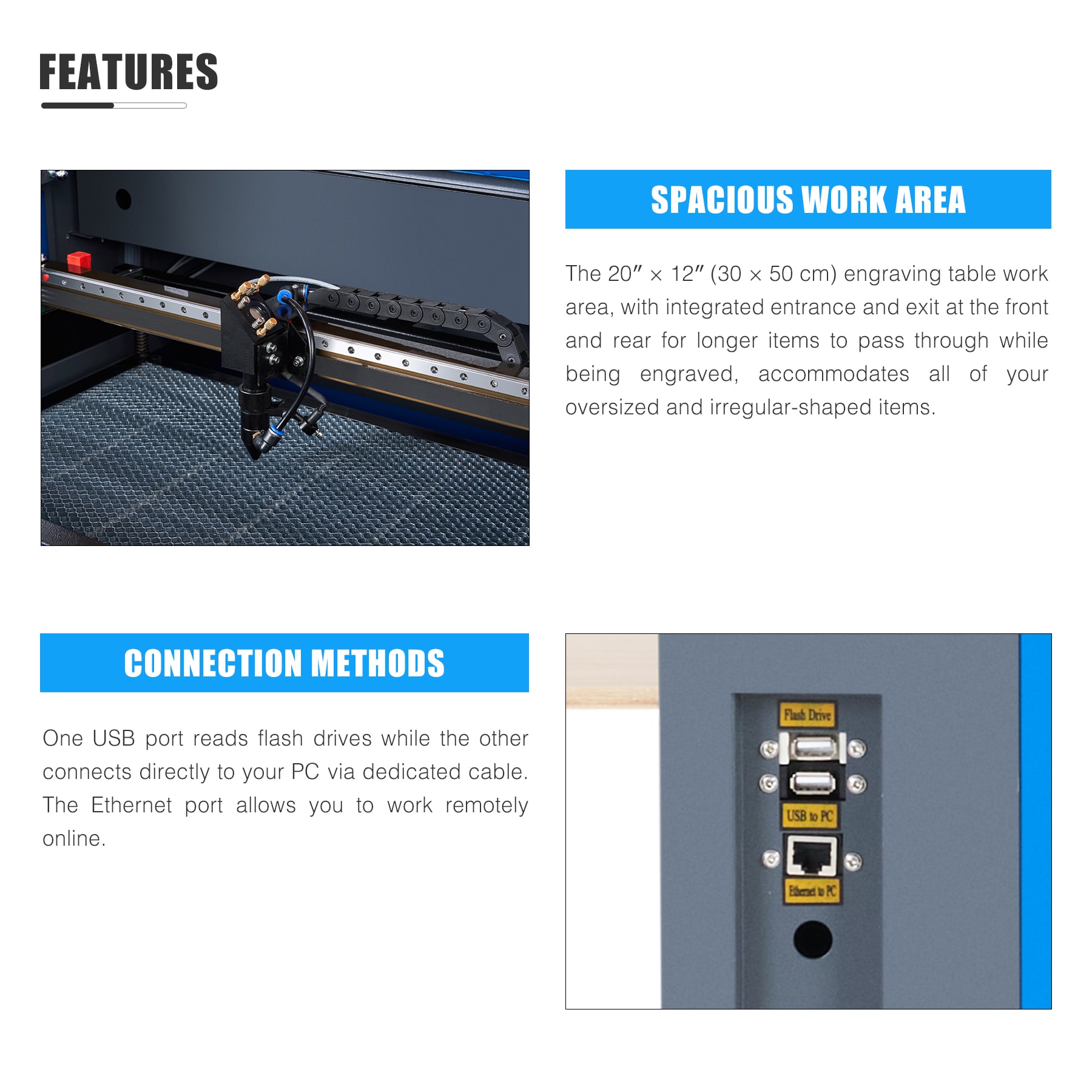

USB & Ethernet Ports

2 USB ports allow flash drive connectivity and a USB-to-USB PC connection

Compatible with LightBurn Software

All OMTech CO2 laser machines of 50W and up are compatible with Light Burn software.

Certifications: Designed and engineered in USA

• FDA Compliant

• CE Certification

• ISO9001 Quality Certification

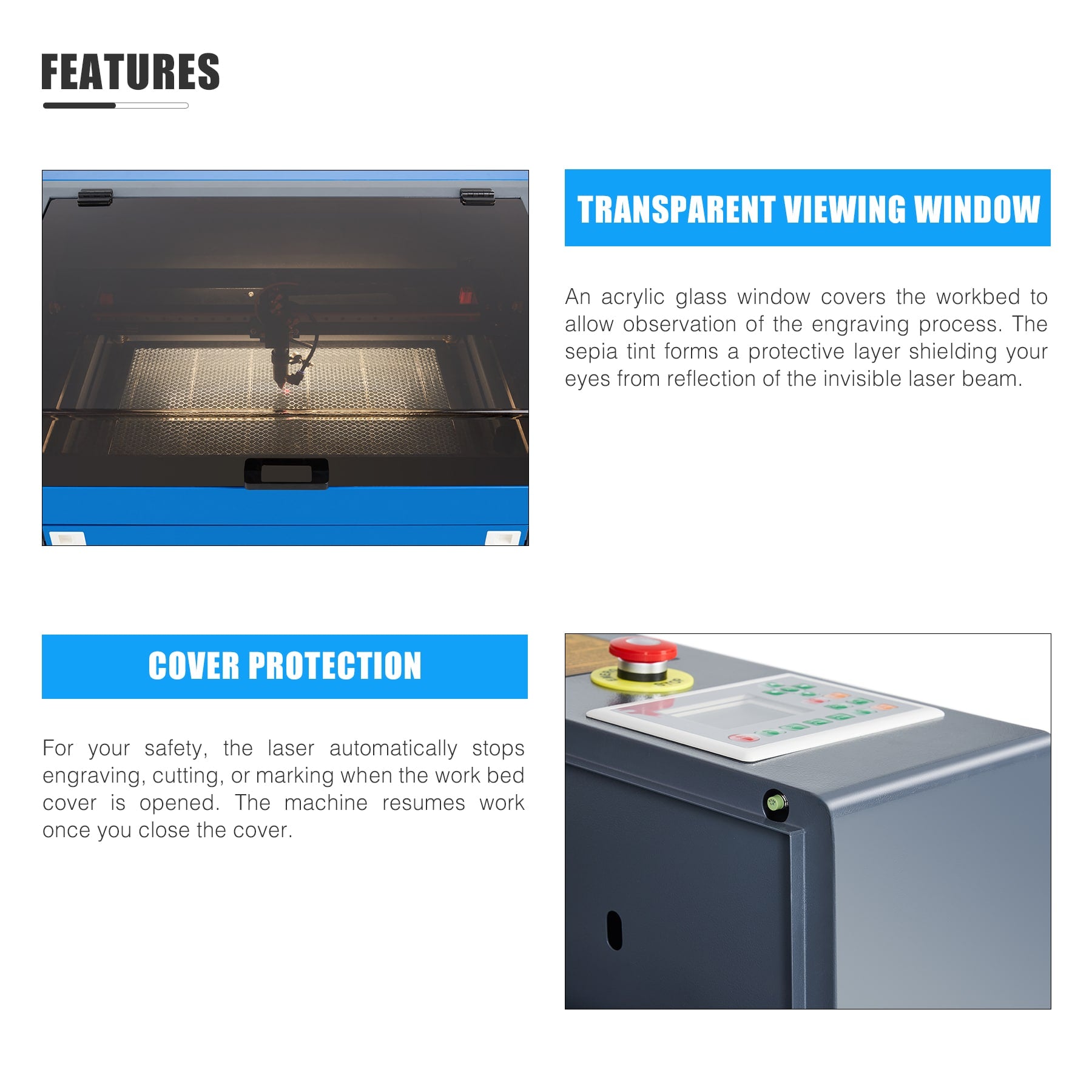

Safety Ensurance

Built-in Ventilation

Water Flow Sensor

Automatic Shutdown

2-Year Warranty

2-year warranty on machine parts and hardware (exclusions apply);

1-year warranty on laser tubes and power supplies of 70W and up;

6-month warranty on laser tubes and power supplies 40W—60W.

Tech Support

45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

SPECS
  • Rated Laser Power

    50W

  • Engraving Area

    12" × 20"

  • Max. Engraving Speed

    23.6 in./sec.

  • Rotary Axis

    Not Included

  • Cooling Method

    Water

  • Product Dimensions

    40.2×25.6×24.8 in.

  • Input Power

    110V/60Hz

  • Max. Cutting Depth

    0.25 in.

  • Max. Cutting Speed

    15.7 in./sec.

  • Positioning Accuracy

    ±0.01 mm

  • Net Weight

    165 lb

  • Front & Rear Pass-Through Size

    25 x 1.4 in.

YOU CAN ENGRAVE AND CUT WITH THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
YOU CAN ENGRAVE AND CUT WITH THESE MATERIALS
  • Acrylic
  • Wood
  • Leather
  • Plastics
  • Fabrics
  • Glass
  • Rubber
  • Cork
  • Brick
  • Granite
  • Marble
  • Tile
  • River Rock
  • Bone
  • Melamine
  • Phenolic
  • Aluminum
  • Stainless Steel
  • Titanium
