Download the Manual

• Dimensions: 51.2 x 37.4 x 37.8 in. (130x95x96 cm)

• 24 x 35 in. (600x900 mm) Marking area

• Front Pass-Through Size: 37.4x3.5 in. (950x90 mm)

• Rear Pass-Through Size: 37.4x1.5 in. (950x40 mm)

• Side Pass-Through Size: 25.5x0.7 in. (650x20 mm)

• Weight: 440 lb. (200 kg)

• Operating Software: RDWorks 8 for Windows 7, 8, or 10 (32/64 bit)

• Supported Image Formats: .ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif

• Data Transmission: USB Cable, Ethernet Cable, USB Flash Drive

• Laser Source: Raycus

• Rated Power: 30W

• Est. Service Life: 100,000 hr.

• Laser Wavelength: 1064 nm

• Laser Frequency: 20-100 kHz

• Max. Marking Speed: 19.7 ips (500 mm/sec.)

• Max. Marking Depth: 0.04 in. (1 mm)

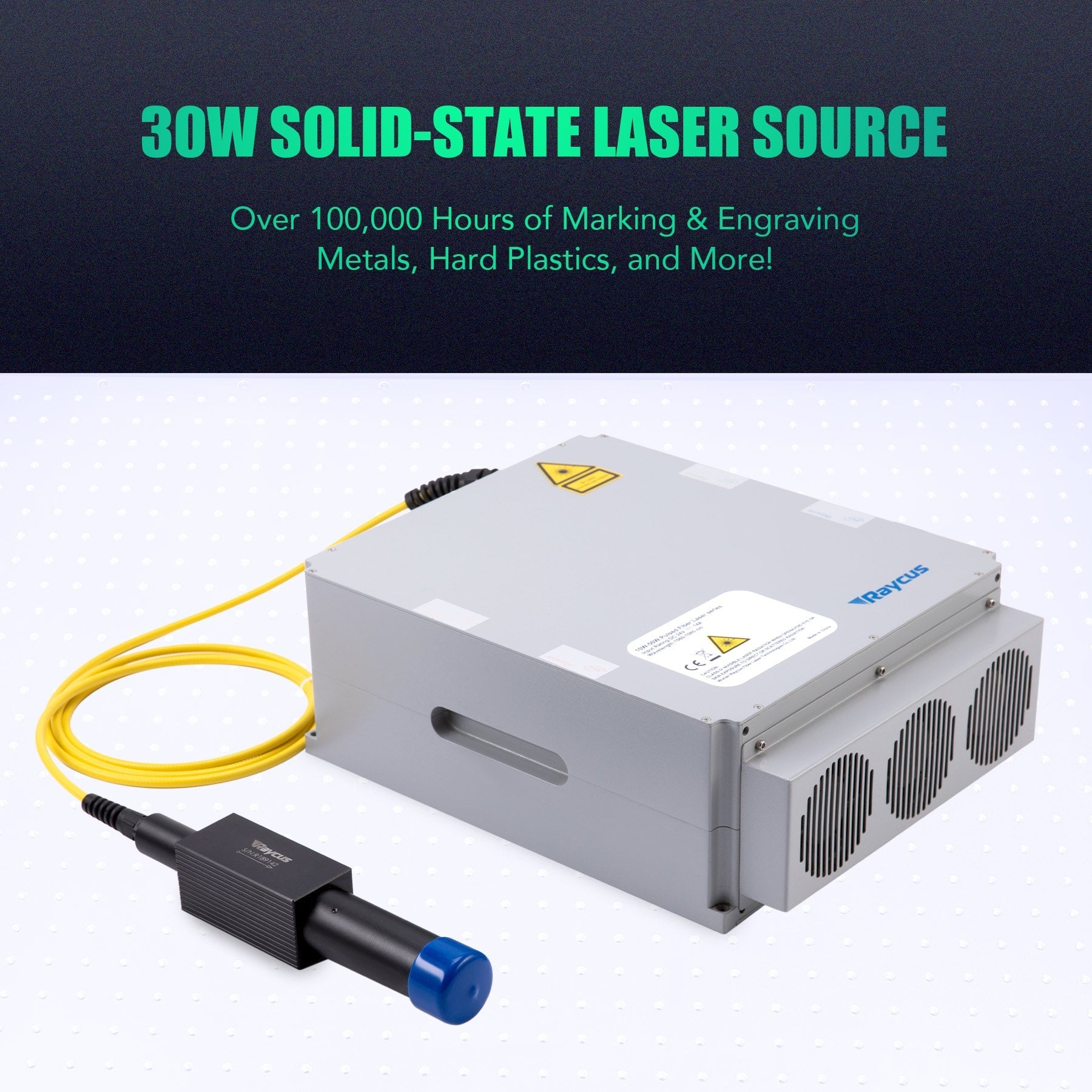

• 30W SOLID-STATE LASER: This 30W fiber laser marking machine by OMTech will allow you to bring your ideas to life with greater speed, precision, and versatility than ever before; with an MTTF over 100,000 hours, this durable laser cuts metal sheets up to 0.04 inches thick to recreate intricate designs perfectly

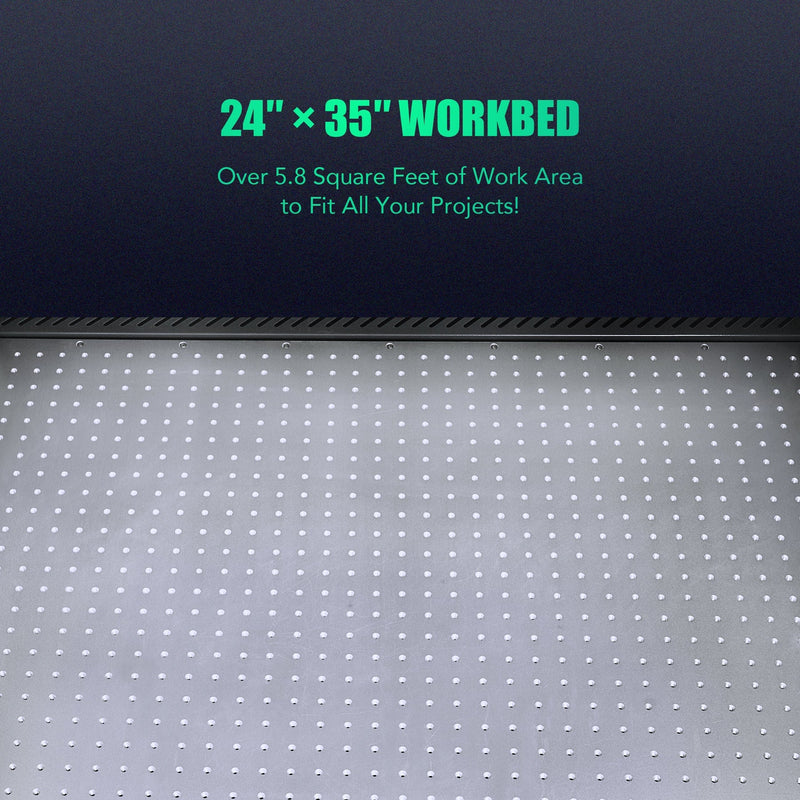

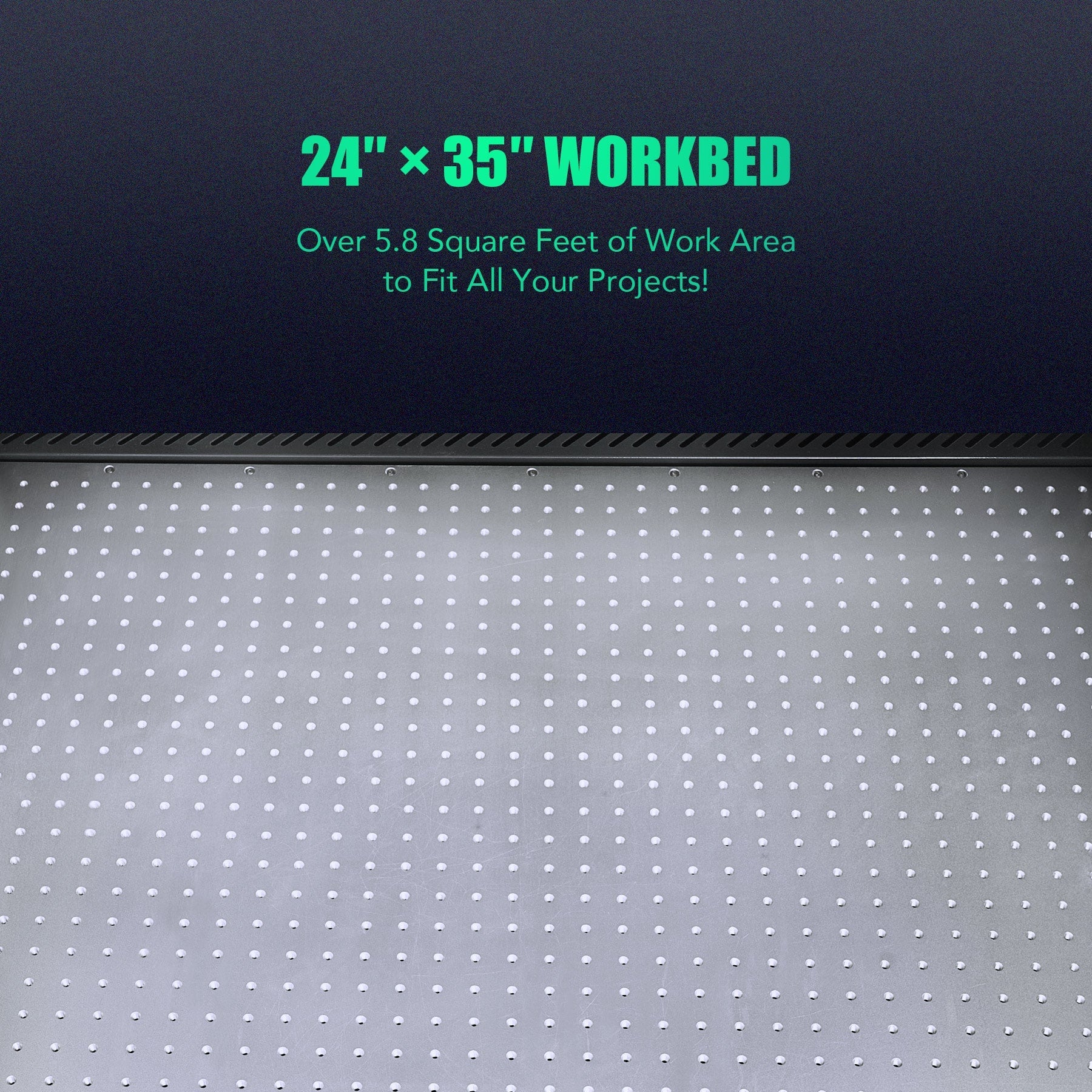

• MOTORIZED 24x35 WORKBED: The spacious 24x35 inch workbed provides 5.8 square feet of room to fit almost any project and four-way 37.4x3.5 at the front, 37.4x1.5 at the back, and 25.5x0.7 on either side pass-through doors open up even greater possibilities; everything adjusts automatically up and down at the touch of a button, eliminating tedious manual adjustment and speeding production

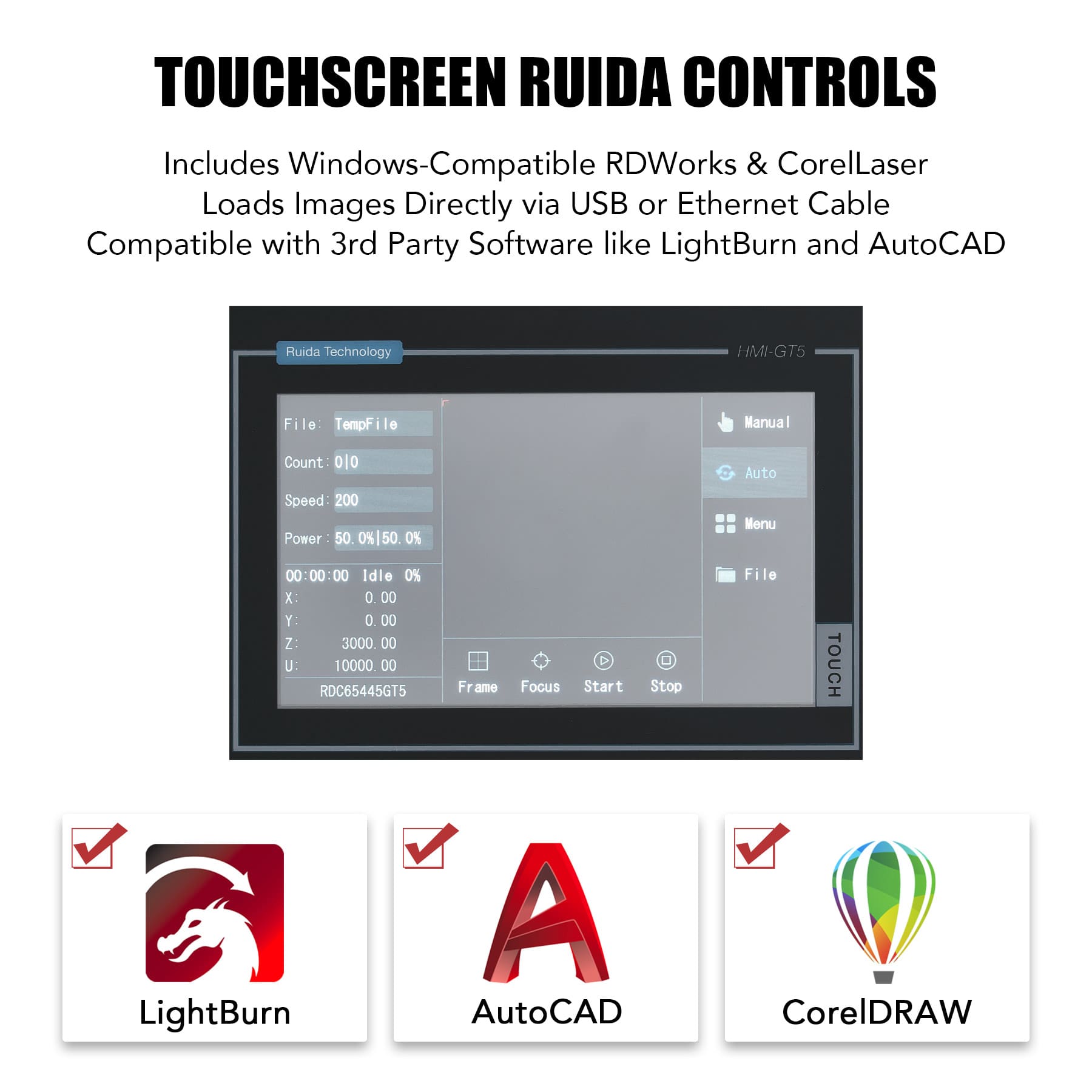

• TOUCHSCREEN RUIDA CONTROLLER: The Ruida touchscreen panel offers precise and easy control and works with most third-party graphic software, easily receiving files via Ethernet or USB; the workspace grid of M6 holes holds your material in just the right spot every time as the laser works its magic at speeds up to 19.7 ips (500 mm/s)

• SAFE & EASY OPERATION: This laser cutting and engraving tool comes bundled with RDWorks software compatible with 32 and 64-bit editions of Windows 7, 8, and 10 and a wide range of image formats (see below); the transparent viewing window allows you to observe your engraver in action; and a built-in air assist quickly blows away smoke, dust, and sparks

• SUPERIOR SUPPORT & SERVICE: From garage artists to backyard businesses to professional jewelers and workshops, the OMTech community continues to grow thanks to our passionate dedication to making quality engraving available to all; order your own fiber engraver today and enjoy fast US-based shipping, a strong 2 year warranty, and helpful customer service and tech support, available weekdays from 8 am to 4:30 pm PST

• 1 x 30W Fiber Laser Engraver

• 1 x Ethernet Cable

• 1 x USB Cable

• 1 x USB Flash Drive with Software

• 1 x WIFI Route

• 1 x Power Cord

• 1 x Instructions

• No need to worry! We offer a 2-year parts warranty on all machines.

• FDA Compliant

• CE Certification

• One 45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

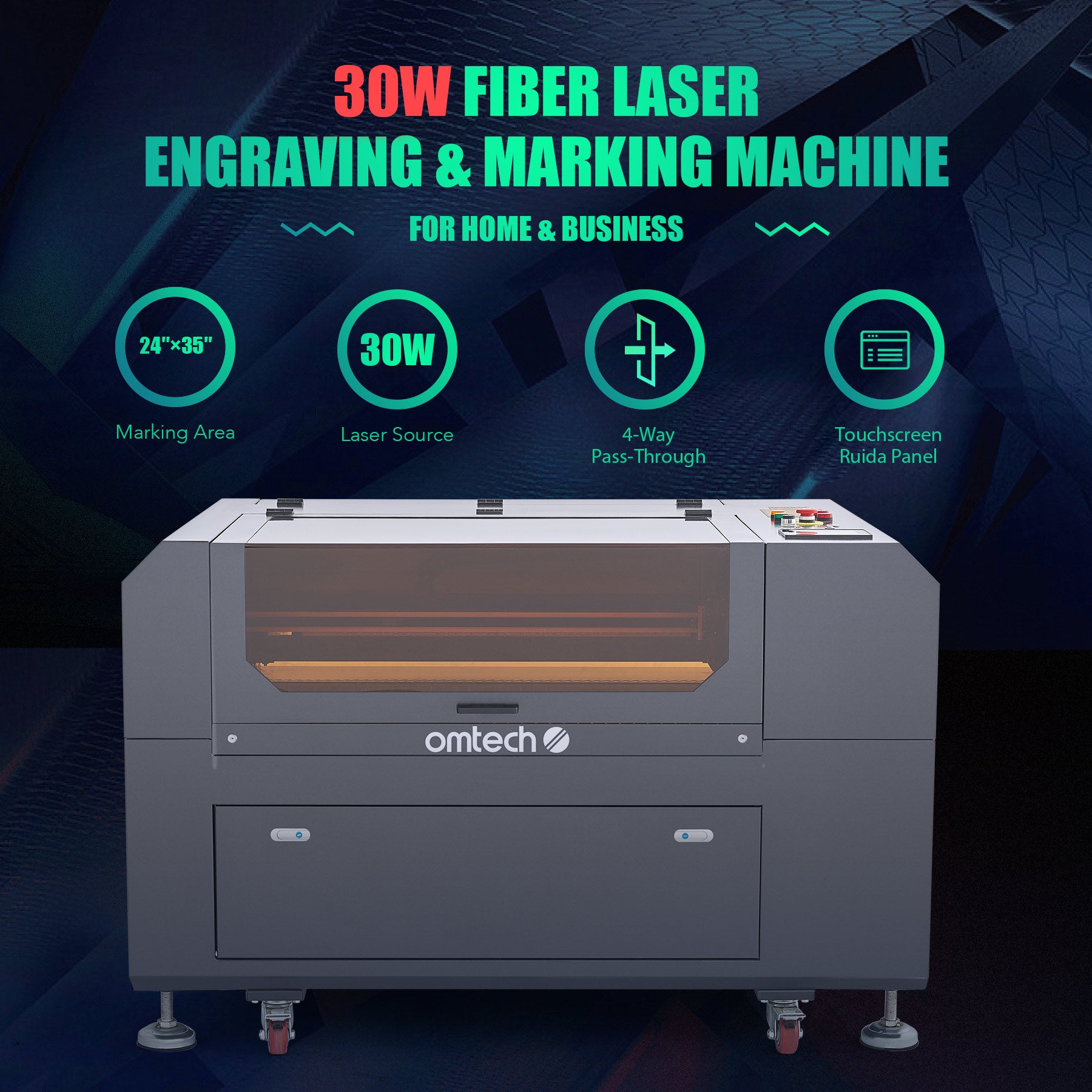

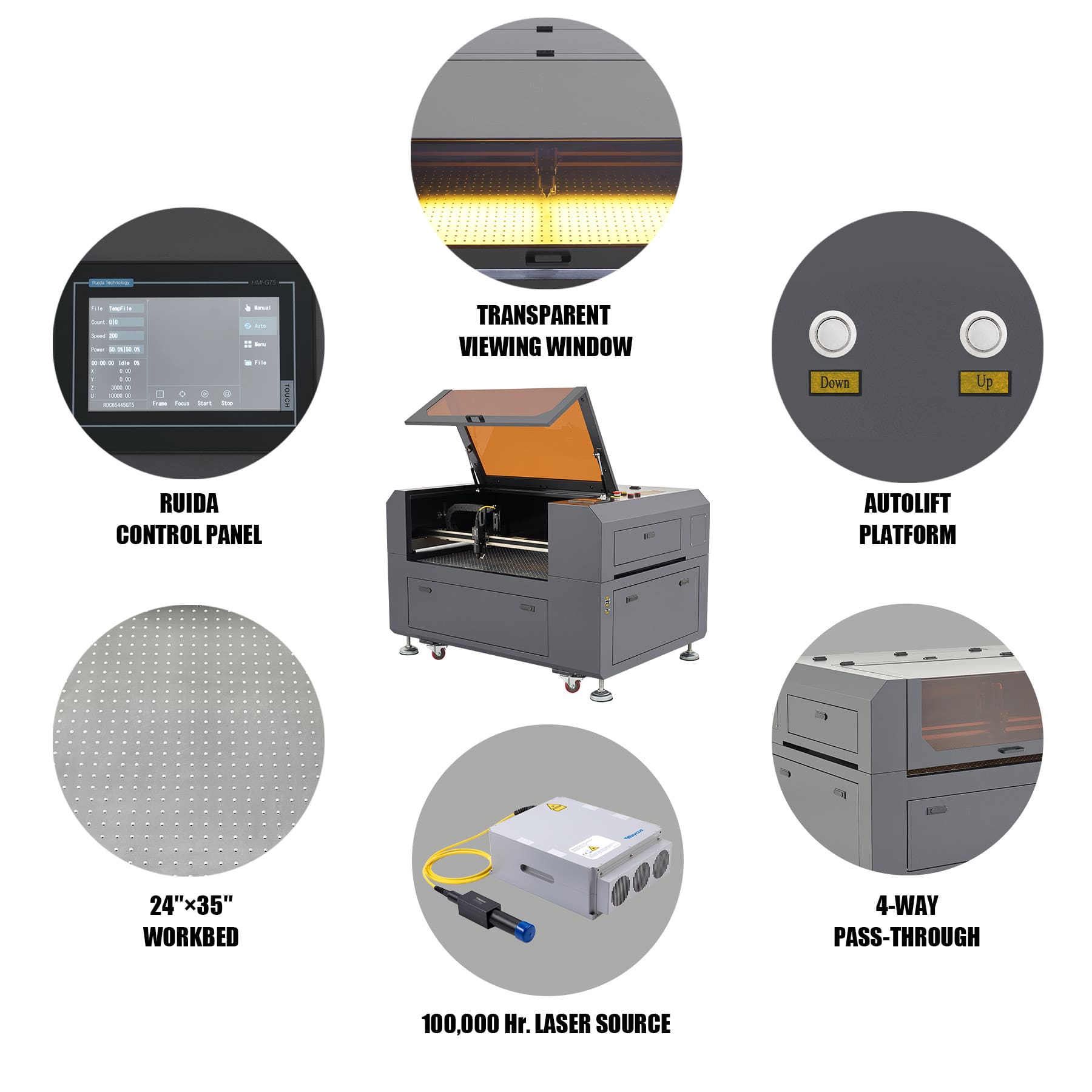

• This innovative 30W fiber laser engraver is your ultimate resource for engraving words, logos, pictures, barcodes, and more on metal (including personalized gold and silver jewelry!) and other materials with a quick turnaround and perfect accuracy. Our device's state-of-the-art air-cooled Raycus fiber laser avoids the tetchiness, fragility, and water-based mess of CO2 laser tubes. Instead, it provides solid-state efficiency, quality, stability, and durability for its entire service life of 100,000 hours. This laser marking and etching machine provides large 24x35 inch working area, 25.5x0.7 pass-through doors on either side, 37.4x1.5 back door, and 37.4x3.5 front door that allow even larger pieces to be worked on. The motorized workbed can be automatically raised or lowered at the push of a button for easy operation. Observe your engraver in action thanks to the sepia tinted acrylic window. Compatible with Windows 7, 8, and 10, this laser etching machine lets you upload your designs using the included RDWorks 8 software or via the Ethernet or USB ports, and everything is precisely and easily controlled on the touchscreen Ruida control panel. For all your projects cutting and marking metals, gems, silicon, and more, you can do no better.

• Acrylic

• Hard Plastics

• Brick

• Granite

• Marble

• Tile

• Aluminum

• Gold

• Silver

• Stainless Steel

• Brass

• Titanium

• Tungsten

*Contact us with questions on specific materials not listed, we can process a sample for confirmation. Some PVC-based acrylics can create toxic fumes when lasered.
